Customer demand:
1. Test object: burner of gas stove
2. Customer requirements: Quickly obtain the three-dimensional model of the gas stove head and conduct quality inspection. If the quality problem of the gas stove head is found, 3D inspection of the production mold is required, and the problem is analyzed and judged through the 3D surface inspection.
3. Current difficulties that customers need to solve:
The gas stove head requires high dimensional accuracy, the traditional three-coordinates are difficult to detect, the detection efficiency is slow, and the complete data of the complicated parts are difficult to obtain.
Gas stove burners are irregular cylindrical and difficult to detect. Traditional manual measurement is not accurate enough to detect specific errors in product processing, especially the detection of the curvature and angle of the gas stove burner.
Gas stove burner 3D full-size inspection solution (blue photo 3D scanner)
1. Preparation
First of all, surface treatment of scanned samples shall be carried out:
1) Because the 3D scanner uses optical method to scan the object, so some objects reflective surface, light transmission or absorption of the object need to do surface treatment spray imaging agent.
2) Paste the marking points. The stitching of marking points is performed by the software algorithm. The 3D scanning system needs to superimpose the common markers identified between the two scans to make the two scans exist in a unified coordinate system, so as to achieve complete data Mosaic.
2. Scan to obtain 3D data

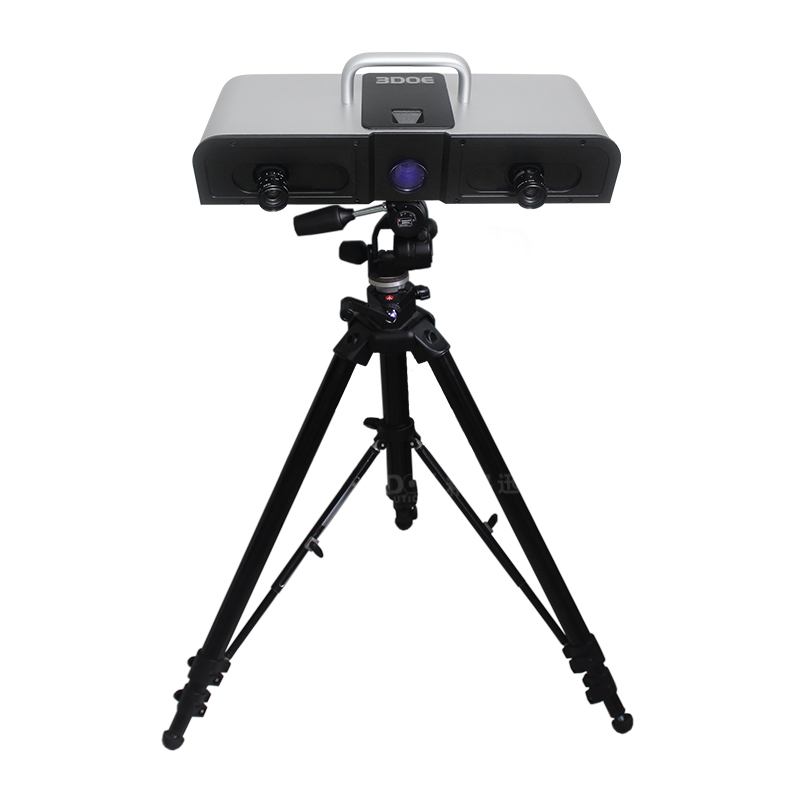

To scan the burner of the gas stove, our technical engineers use a blue-ray photo 3D scanner (PTS-E) to scan to obtain the 3D virtual data of the burner of the gas stove.
3. 3D detection digital-analog comparison
The burner head of the gas stove is compared with the 3D detection digital and analog, and the contour of the burner head of the gas stove, the curvature of the curved surface and other parameters are measured, and the deviation results are marked.
Highlights of the Blu-ray Photographic 3D Scanner used in the gas stove head 3D inspection solution
1. Non-contact blue light 3D scanner
2. Quickly obtain 3D data with complex textures
3. Fast scanning speed and high precision
4. Reversible design, reducing design time
5. Can quickly measure the size of car lights
Summary of gas stove 3D detection solutions:
Jingyixun uses a blue-light camera-type 3D scanner to scan the gas stove head to quickly obtain complete 3D data of the gas stove head, and perform 3D inspections on the gas stove at different stages in the production process, which can generate accurate surface detection Report and size inspection report to analyze the full-size azimuth deviation of the gas stove head. Improve the performance of gas stoves and the utilization rate of gas, minimize gas waste, and provide the power of gas stoves; Blu-ray camera-style 3D detection is fast and efficient, which can improve efficiency and reduce costs from cost and labor, and better Improve the quality of work.
