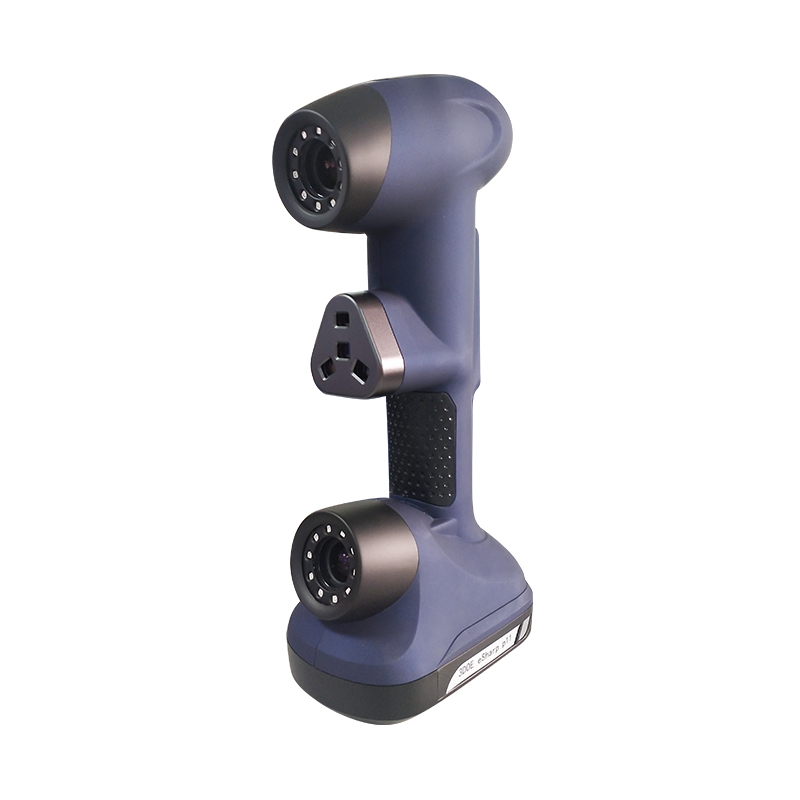

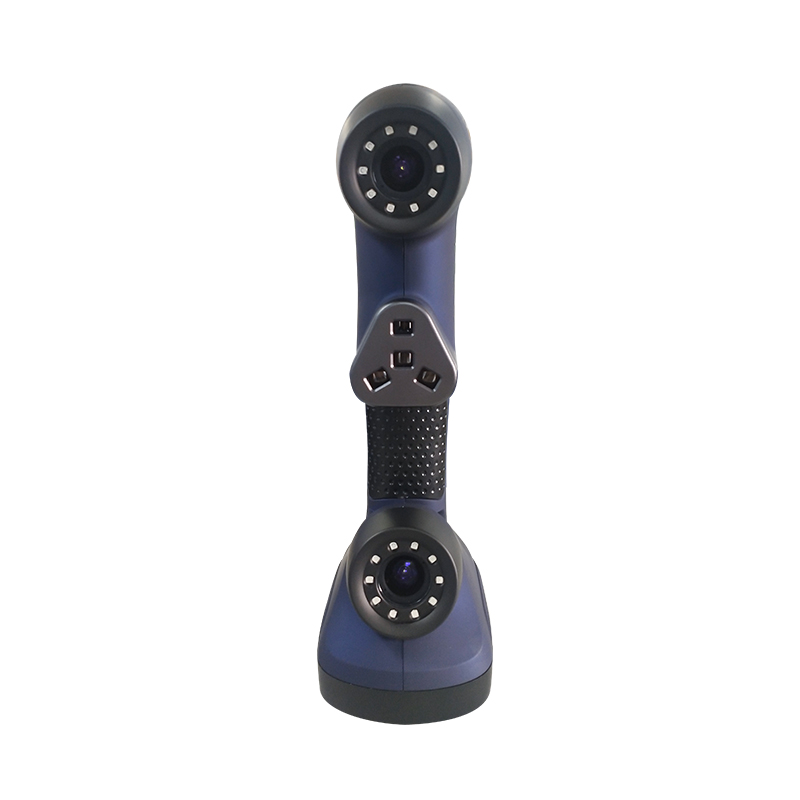

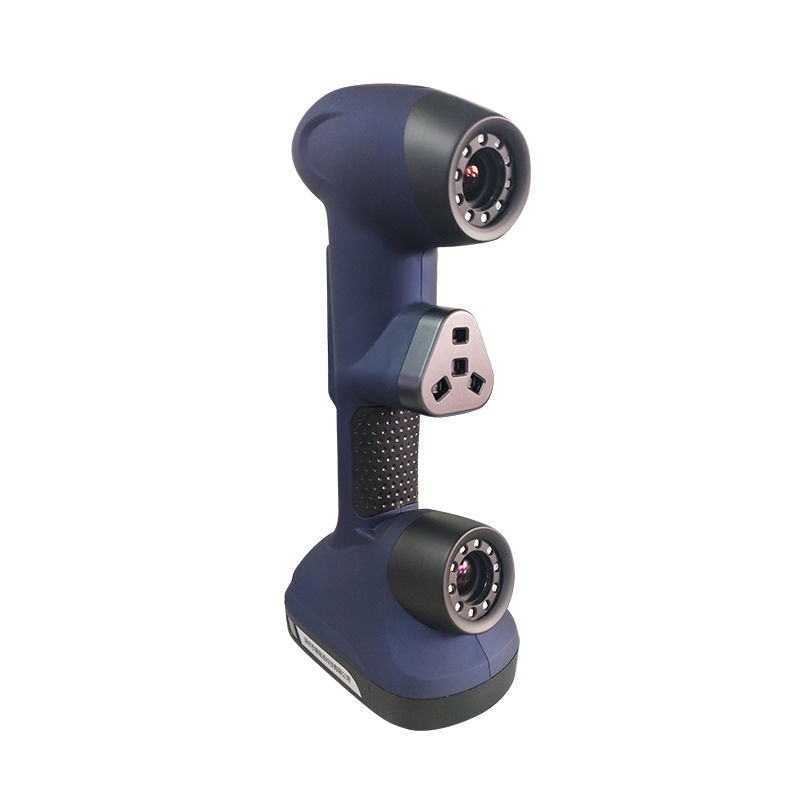

The eSharp-P 11 (blue light) handheld laser 3D scanner can realize fine scanning of small signs, and the precision of the fine mode can reach 0.01mm. Visual operation (computer displays real-time data). High accuracy, faster measurement rate, easy to achieve data acquisition of bright surfaces, widely used in quality inspection, reverse design, digital display, automobile manufacturing, mold manufacturing, 3D printing, etc.
The eSharp-P 11 (blue light) handheld laser 3D scanner can realize fine scanning of small signs, and the precision of the fine mode can reach 0.01mm. Visual operation (computer displays real-time data). High accuracy, faster measurement rate, easy to achieve data acquisition of bright surfaces, widely used in quality inspection, reverse design, digital display, automobile manufacturing, mold manufacturing, 3D printing, etc.

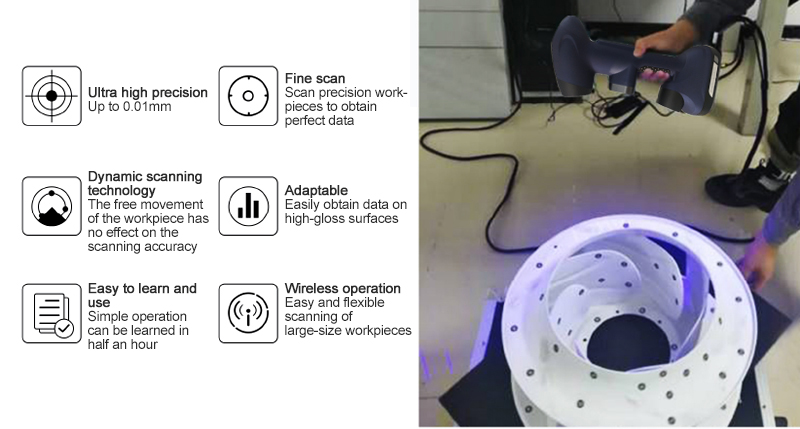

Features

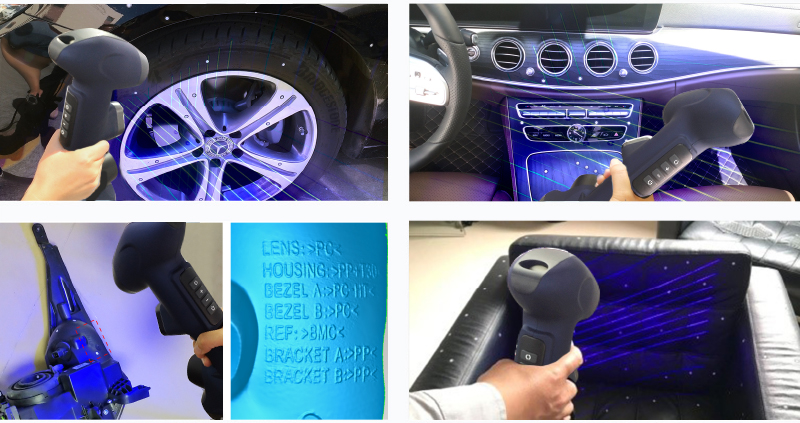

▣ Classic cases
Car wheel scan Car interior scanning
Fine scan Sofa scan
▣ Technical Parameters
Product parameter | eSharp-P11 | |
Standard mode | Fine mode | |
Measuring rate | 650,000 measurements/sec | 450,000 measurements/sec |
Scan area | Maximum 600 X 550mm | |
Blue laser light source | 14 blue laser lines (+ 1 extra beam for scanning deep holes, + extra 5 beams for scanning details) | |
Laser category | Class 11 (safe for eyes) | |
Resolution | Maximum 0. 02mm | |
Precision | Up to 0.02mm | Up to 0. 01mm |
Volume accuracy | 0.02+0.035m m/m | -- |
Volume accuracy (combined with photogrammetry) | 0.02+0.015mm/m | -- |
Reference distance | 300mm | 150mm |
| Depth of field | 450mm | 150mm |
▣ Application field
Aerospace: Reverse has rapid prototyping, MRO and loss inspection, component and assembly inspection
Automobile industry: styling and design (mud truck), car modification, car interior customization, auto parts quality inspection and measurement
Mold industry: reverse engineering, quality control and size inspection, wear analysis, virtual assembly
New energy: hole assembly, component CAD inspection, robot path programming
To understand the specific application, please feel free to consult online (message) or
call 0755-86131192!
Provide system customized solutions!
