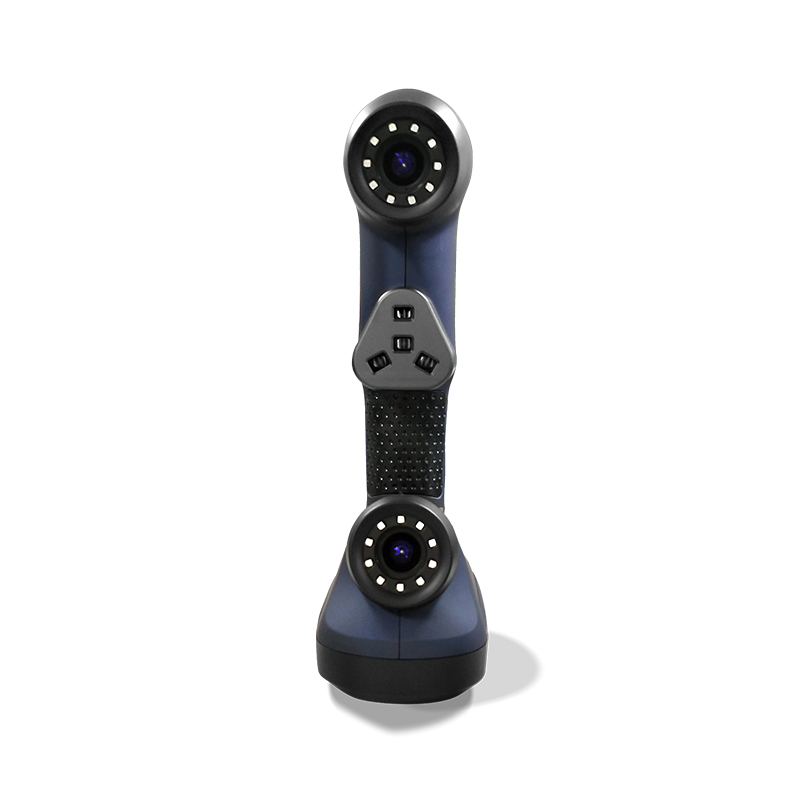

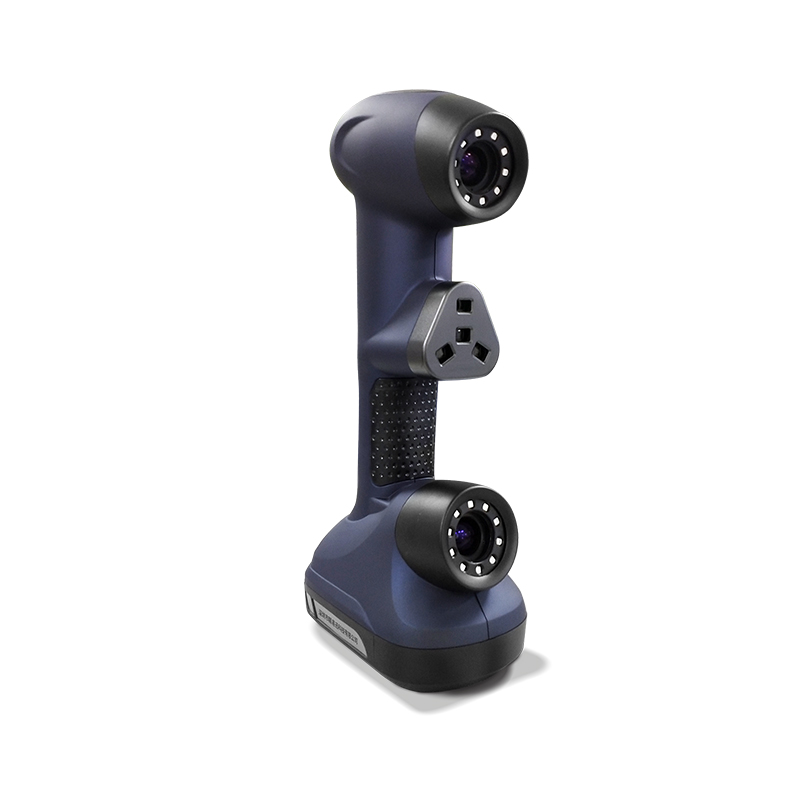

eSharp P10 Handheld 3D Scanner (Blu-ray)

所属分类:

产品型号:eSharp P10

The handheld 3D blue laser scanner uses a blue laser light source, 14 scanning laser beams + 5 fine scanning laser beams + 1 deep hole scanning laser beam. It can scan the fine parts of small features and easily obtain 3D data on the workpiece with high-gloss surface. Industrial-grade precision, with built-in hole position flash measurement function, can extract the center point coordinates and hole diameter from the instant measurement of the workpiece hole position .

0755-86131192

产品介绍经典案例技术参数应用领域联系我们

The eSharp P10 handheld 3D blue laser scanner uses a blue laser light source, 14 scanning laser beams + 5 fine scanning laser beams + 1 deep hole scanning laser beam. It can scan the fine parts of small features, and easily obtain 3D data on the workpiece with bright surface. Industrial-grade precision, with built-in hole position flash measurement function, can extract the center point coordinates and hole diameter for the instant measurement of the workpiece hole position .

Features

1. Blue laser light source: the scanning speed is faster, and the blue laser has a shorter laser wavelength, especially for high-brightness and high-reflective materials, which has a good scanning effect.

2. Dual scanning mode: standard mode and fine mode, which can realize fine scanning of small features of the workpiece.

3. Flash measurement function: the instant measurement of the workpiece hole position can extract the center point coordinate and hole diameter.

4. Visual operation: the computer will display the scan results synchronously while scanning, you can view the scan status and effect in real time, and you can scan again after saving.

5. Scanning flexibility: The device is small in size and can be operated in a narrow space. During the measurement process, the parts and the scanner can be moved freely without affecting the scanning effect of the device.

▣ Classic cases

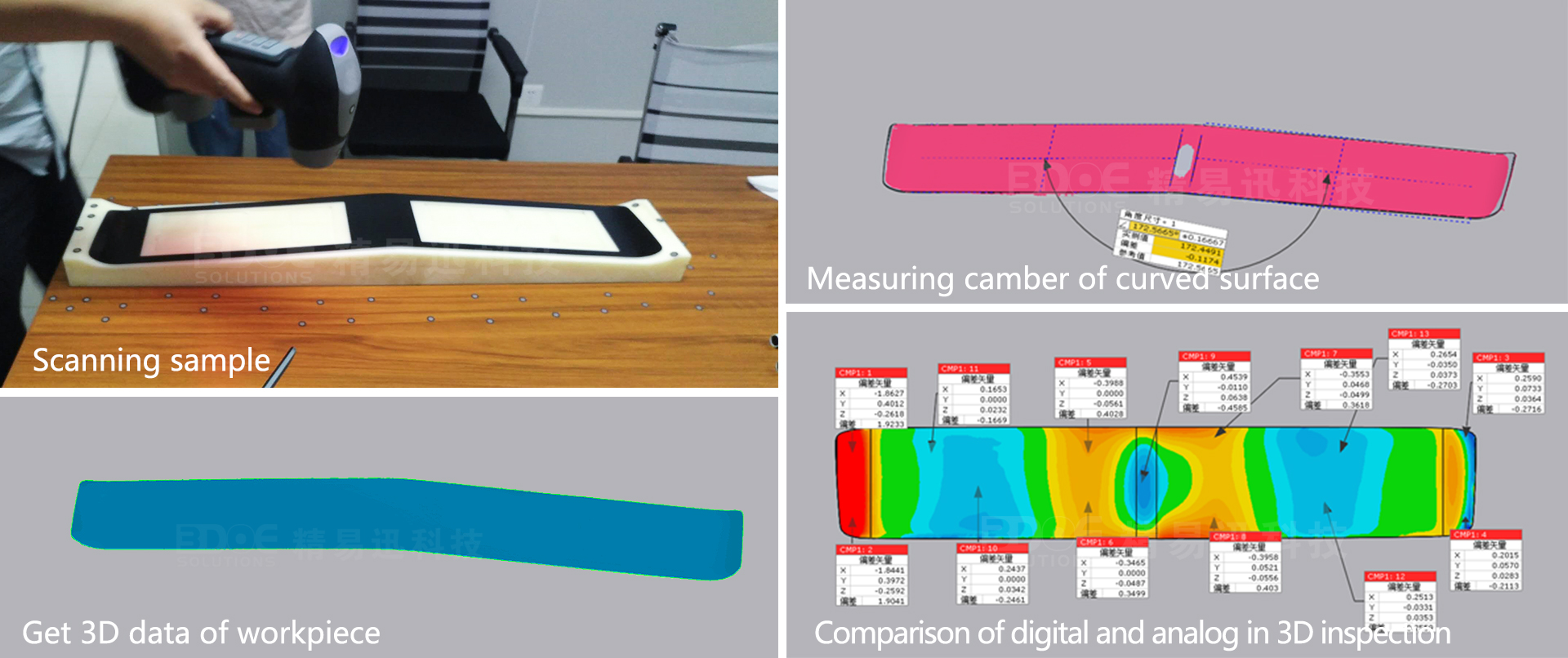

Three-dimensional inspection case of automobile glass


▣ Technical Parameters

Product number	eSharp-P10
Product number	Standard mode	Fine mode
Measuring speed	480,000 measurements/sec	320,000 measurements/sec
Accuracy (mm)	0.02	0.01
Blue laser line	14 laser lines + 1 deep hole scanning laser line + 5 fine scanning laser lines
Laser category	ClassII eye safety level
Scanning area（mm）	275x250
Measuring accuracy（mm）	0.02	0.01
Volume accuracy（mm/m）	0.02+0.06	——
Volume accuracy (mm/m) (Combined with 3D photogrammetry system)	0.02+0.025	——
Reference distance	300	150
Resolution（mm）	0.04	0.02
Depth of field（mm）	250	100
Data output format	.stl, .obj, .asc, .ply, .txt, .xyz, etc., can be customized.
Compatible software	3D Systems（Geomagic Solutions）,InnovMetric Softwre（PolyWorks）, Dassault Systems（CATIV V5 and SolidWorks）,PTC（PRO/ENGINEER）, Autodesk（inventor、Alias、3ds max、Maya、Softimage）,Siemens（NX and Solid Edge）
