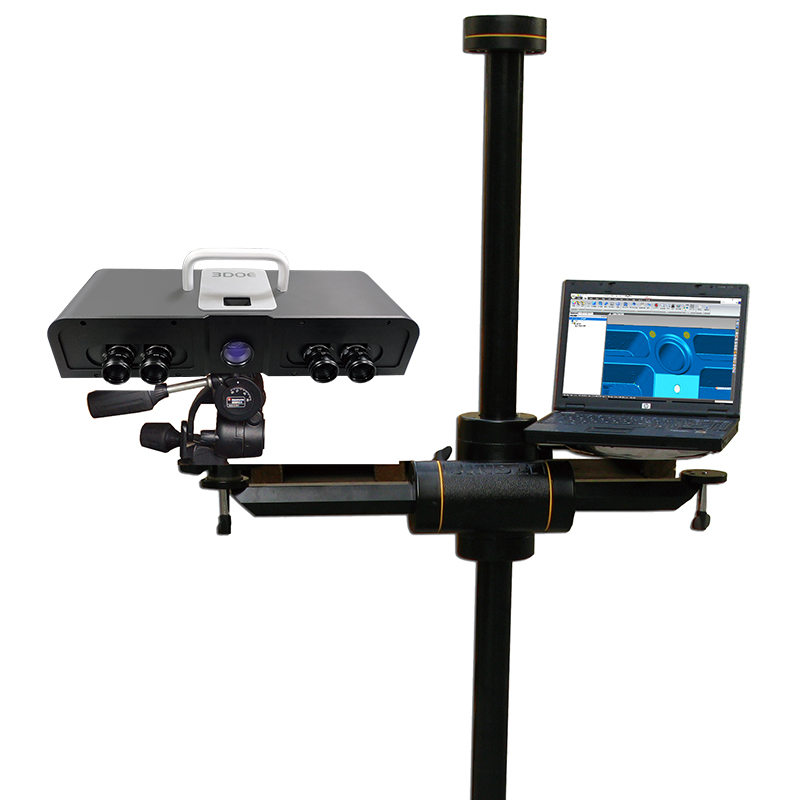

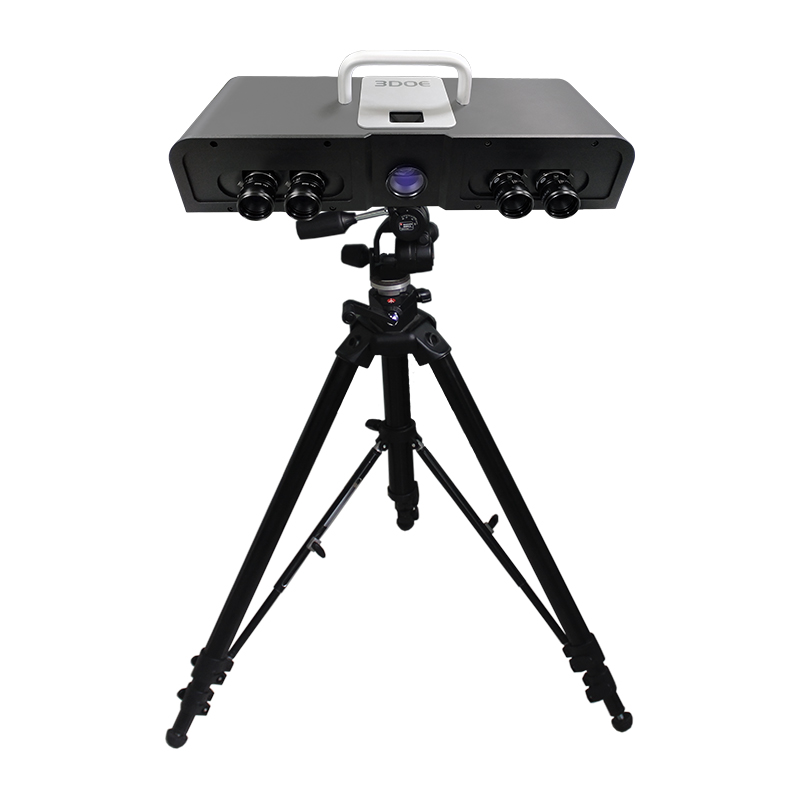

The PTS-E series adopts advanced blue light raster scanning technology, equipped with the company's independently developed control chip and high-precision industrial camera, which can meet various high-precision three-dimensional measurement needs.

Features:

▶ Non-contact blue light scanning, the light source is fine and the effect is clearer and smoother.

▶ The camera resolution is 3 million to 5 million pixels. The higher the resolution, the more details of the scan.

▶ Both multi-color light scanning technology, better sensitivity adaptability.

▶ Compared with the PTS white light series, the accuracy is higher, the higher the details are displayed, and the resolution can reach 0.03mm.

▶ Suitable for three-dimensional scanning of objects as large as a few meters and small to a few millimeters.

▶ Optimized processing technology for large data volume.

▶ It has low environmental requirements and can work in normal light environment indoors or outdoors.

▶ Fully automatic splicing of marker points, intelligent fusion into a single-layer point cloud, the test object can be flipped and moved arbitrarily during the scanning process, so as to realize the omni-directional scanning of the object, reducing the dead angle and scanning blind area of the measurement.

Difference between binocular and quadruocular :

Binocular : The camera position is adjustable or can have multiple sets of scanning range. Switching scanning range requires recalibration.

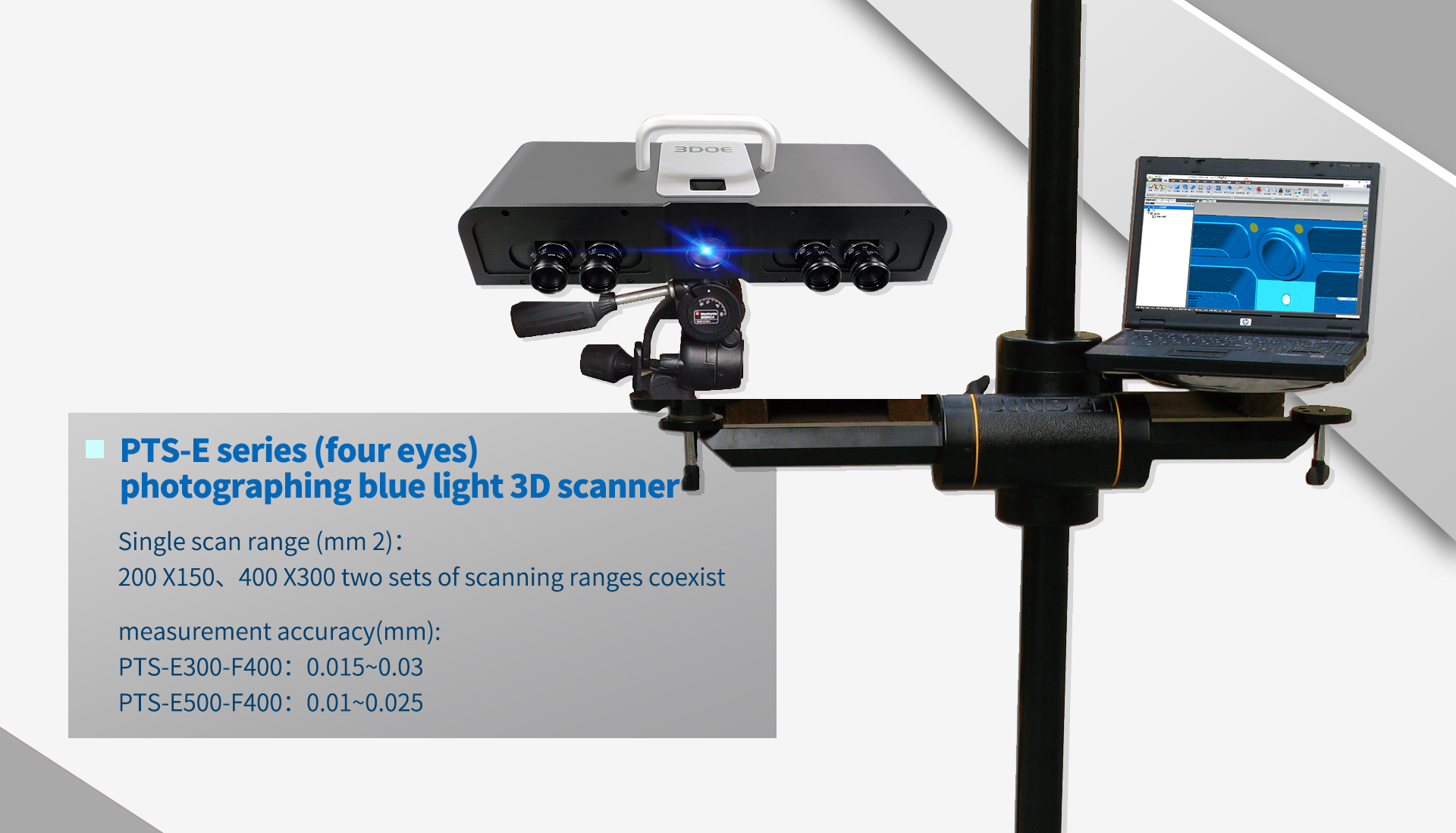

Four -eyes: It has two scanning ranges, namely two groups, which can be switched freely. For example, after scanning an object of 4 meters, an object of 1.5 meters can be changed directly without adjusting camera Angle and correction.

Photographic 3D scanner-measurement principle

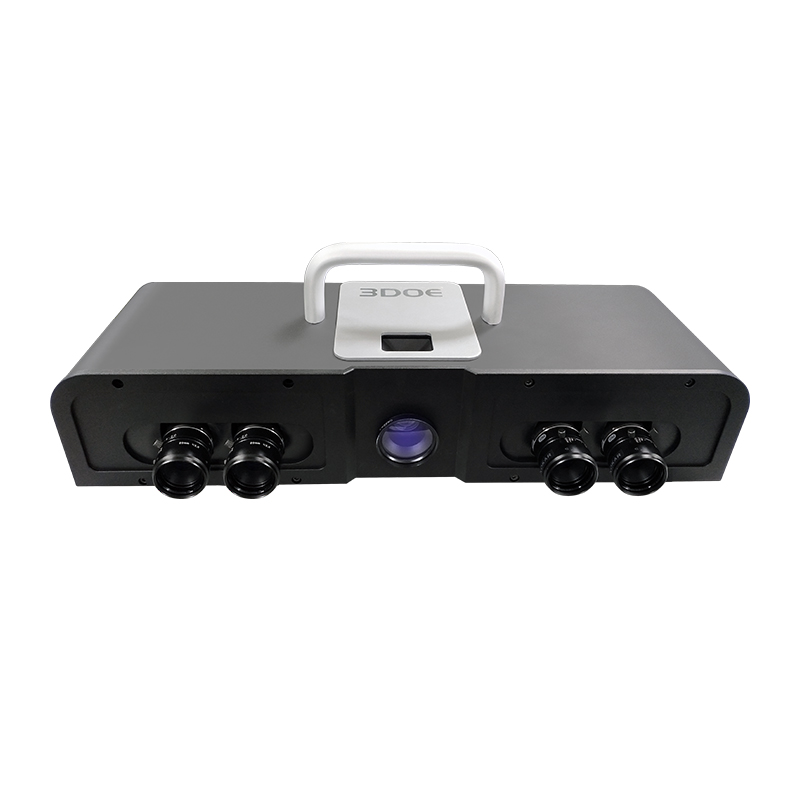

The 3DOE 3D measuring head is composed of two high-resolution industrial CCD cameras on the left and right and a grating projection unit. The structured light measurement method is used to project a group of grating fringes with phase information onto the surface of the measured object using the grating projection unit. The two cameras on the left and right can measure simultaneously, and combine computer vision technology, photoelectric sensor technology, image processing technology and software control technology to obtain high-density three-dimensional data on the surface of the object in a very short time. The rotating object or scanning head is used to change the scanning angle of view. Based on the automatic splicing technology of multi-view point cloud, it can complete 360° scanning of the object in all directions.

Advantages of blue light: The shorter the wavelength, the better the reflectivity, and the better the imaging effect for objects with complex textures!

▣  Classic cases

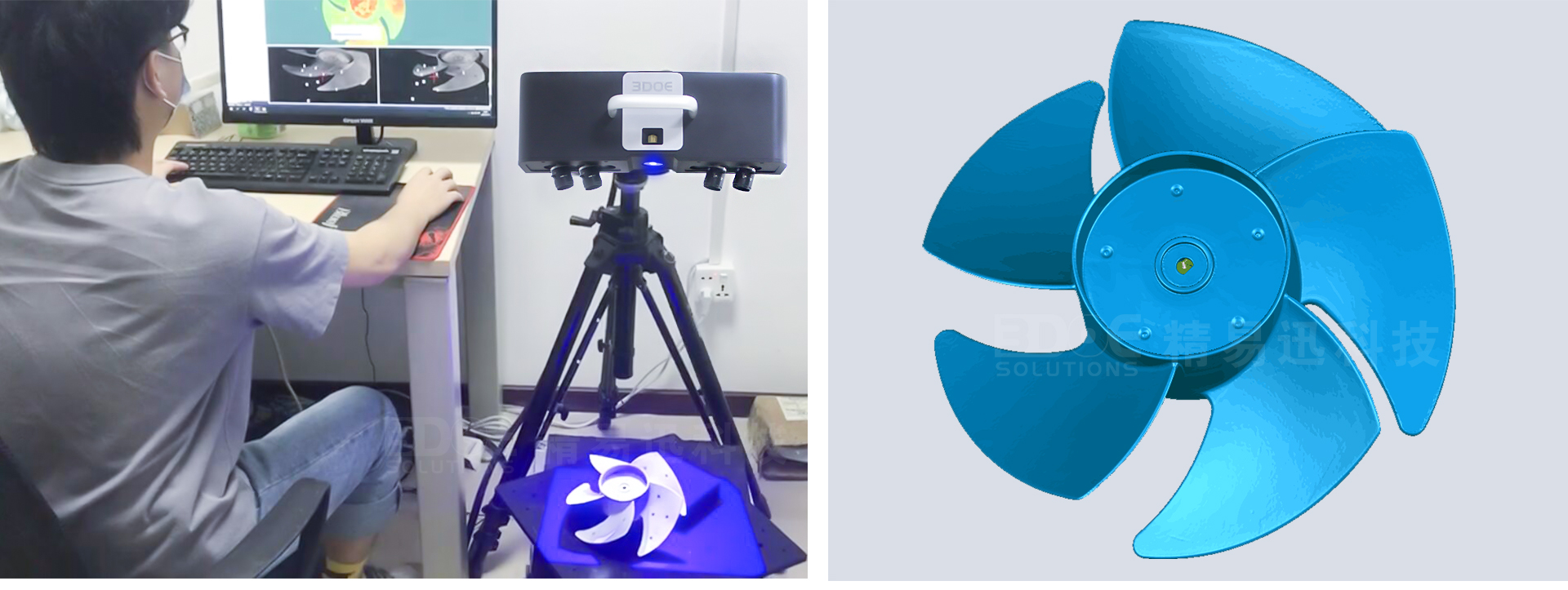

Fan blade 3D scanning

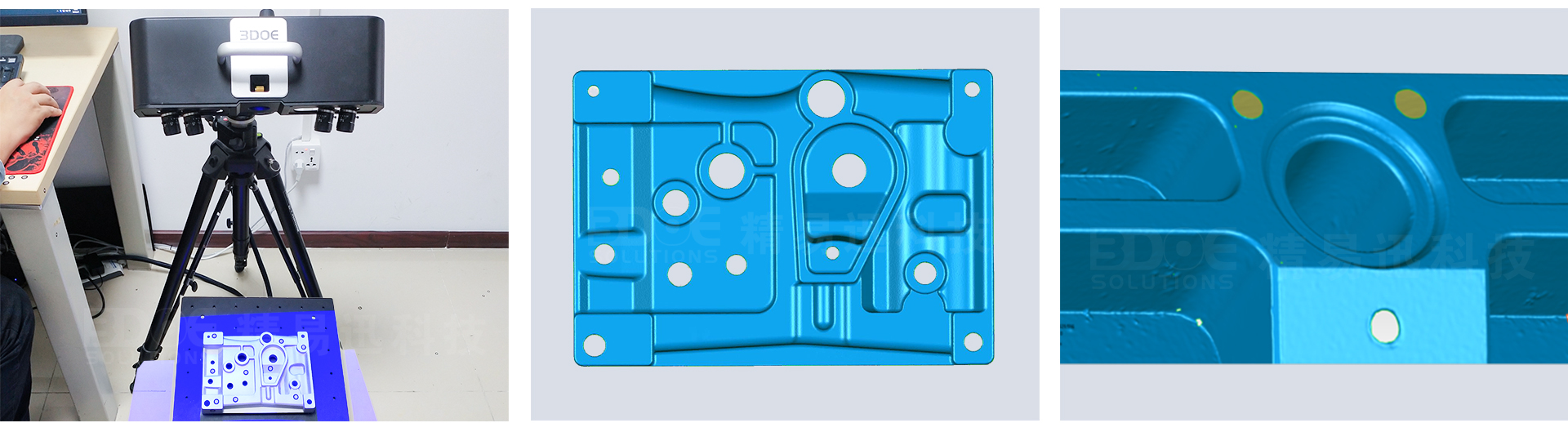

3D scanning of metal parts

▣  Technical Parameters

▣  Application field

●Auto Parts

●Industrial Design

●Reverse design (copy number)

●Mold design and inspection

●Handicraft Scan

●Wood carving scan

●Clothing Design

●Game production

●Household appliances

●Electronic Products

●Teaching Research

●Cultural relics and archaeology

To understand the specific application, please feel free to consult online (message) or

call 0755-86131192!

Provide system customized solutions!
